Forget about PEDIT, use PolyTools for AutoCAD

PolyTools is a set of intuitive tools to quickly create and modify polylines in AutoCAD.
PolyTools can quickly transform, split or merge polylines.

Tools for architects and building engineers
PolyTools offers some basic polyline functions designed to improve 2D drawing productivity in building design.

How fast is PolyTools compared to AutoCAD's standard editing functions ?

Drawing and editing polylines are the most used functions for many drafting works.
Polytools has been created to perfom the simplest editing functions in as few clicks as possible.

add a vertex

6 clicks

2 clicks
delete a vertex

8 clicks

1 click
move a vertex 6 clicks 2 clicks
move a segment 6 clicks 2 clicks
split a closed polyline 18 clicks 2 clicks
merge 2 polylines 10 clicks 1 click
draw a "wall" 16 clicks 3 clicks

USD 100.-




Expand a polyline to a closed polyline (draw a wall)
document management
1- click on the polyline
2- click on the side of the offset (or press the space bar if axed)

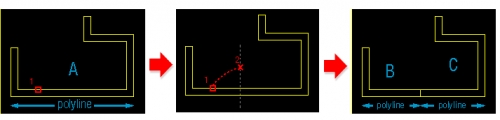

Split one closed polyline into 2 closed polylines

document management
1- click on the segment where you want the section to be made
2- click any point square to the section (or select 2 points for skew sections)
3- optional : click a 2nd point to make another section (e.g. to make a hole for a door)




Merge 2 closed polylines

document management
1- Click on the common segment of both polylines


Add a vertex
document management
1- Click on the segment on which you want to add a vertex
2- Move the new vertex to the final position


Delete a vertex
1- Click a segment close to the vertex to be deleted
2- The closest vertex will be removed

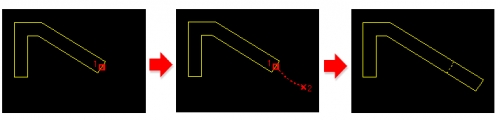

Move a segment
document management
1- Click on the segment to move
2- The segement is forced to move sideways. Click a point to move the segment or enter a numerical value


Move a vertex
document management
1- Click on a segment close to the vertex to be moved
2- Click the new position of the vertex




Free 30-day Trial


To receive a non-exe version of PolyTools for AutoCAD, please contact us at support@swisscad.com
Current version is 2.009
To update PolyTools, download and reinstall.
